Description

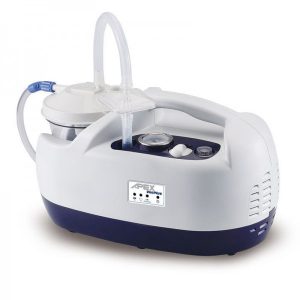

New ASKIR 20 is a desktop type electric aspirator for the aspiration of body fluids, oral, nasal and tracheal aspiration in adults or children .
Suitable for tracheostomy patients, minor surgery applications, and post-operative therapy in home care.
The main unit equipped with vacuum meter (bar & kPa) and vacuum regulator. It complies with the EN 60601-1-11 standard “for use in the home health care environment” and carries IP21 degree of protection.
Accessories included:
– Liquid containers with overflow valve system (different options, see below)
– 6×10 silicone Tubes (autoclave) + conical Connector ø 8-9-10mm
– Antibacterial and hydrophobic filter (single patient)
– CH20 cannulas
– Power cord with Schuko plug
Technical characteristics:
– Oiless motor and piston pump without maintenance
– Power supply 230V-50 Hz
– ISO 10079-1Classification high vacuum / LOW FLOW
– Max Vacuum (adjustable -0.75 Bar / -75kPa / – 563 mmHg
– Max free air flow of 16 l / min
– Noise level 60.5 dB
– Power consumption 184 VA
– Fuse 1 xF1.6 A 250 V
– Duty cycle Continuous operation
– Weight 2,5 Kg
– Size 35x21x18 cm
– IP rating IP21
– Manufacturing Site ITALY
Compatibilities:
– Possibility of adapting a vacuum control valve to the equipment
Warranty:
– 2 years
